CHCO5-15t法兰压力传感器（15t）
CHCO-5传感器 产品图片CHCO-5传感器 产品3D图CHCO-5传感器 产品尺寸 此图纸是15t量程CHCO-5技术参数Model型号CHCO5-15TCapacity量程6,8,12,16,35,50,75(t)可定制Accuracy Class精度等级C3Rated Output额定输出1.0mV
- 灵敏度： 1.0mV/V
- 型号： CHCO5-15t

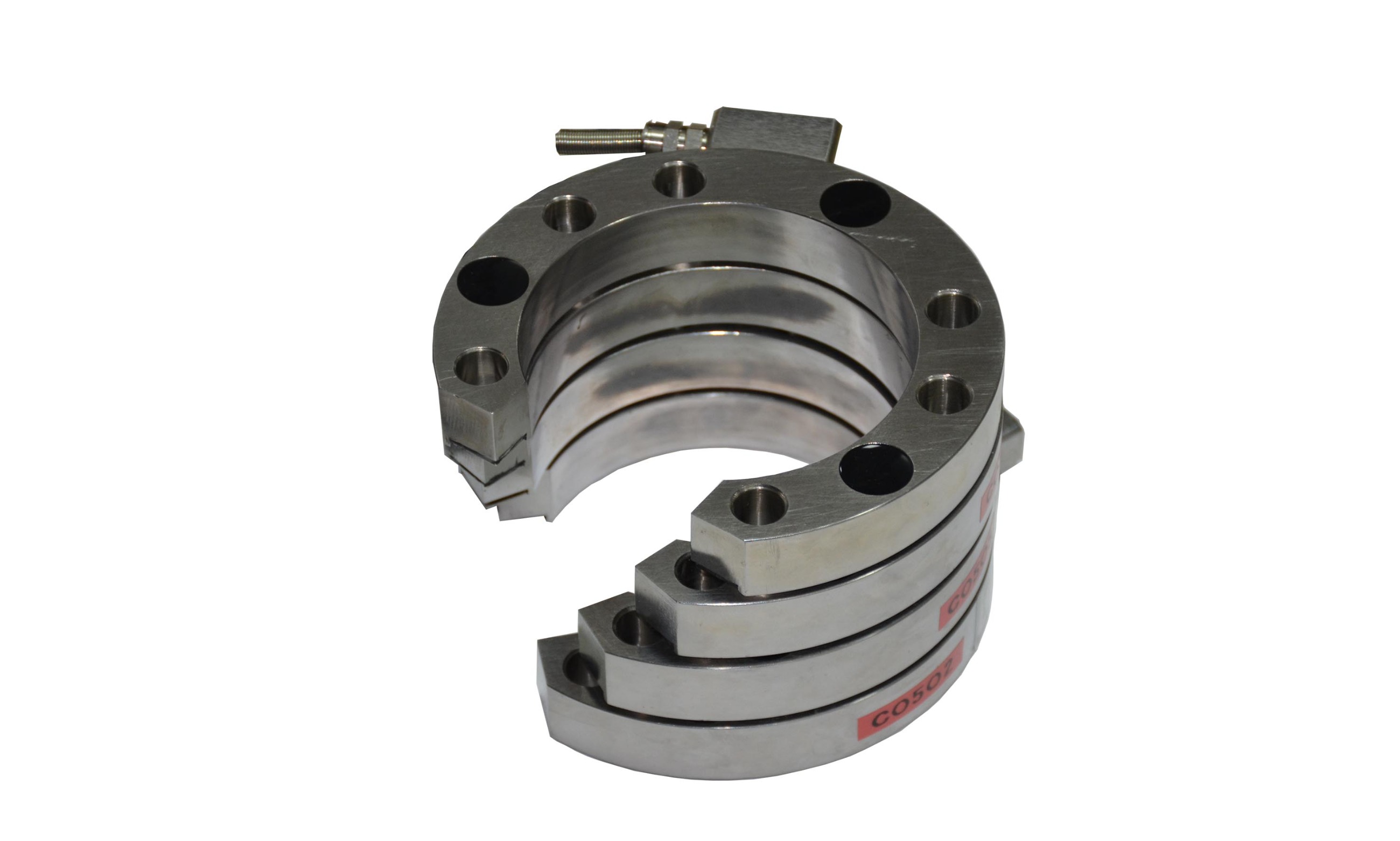

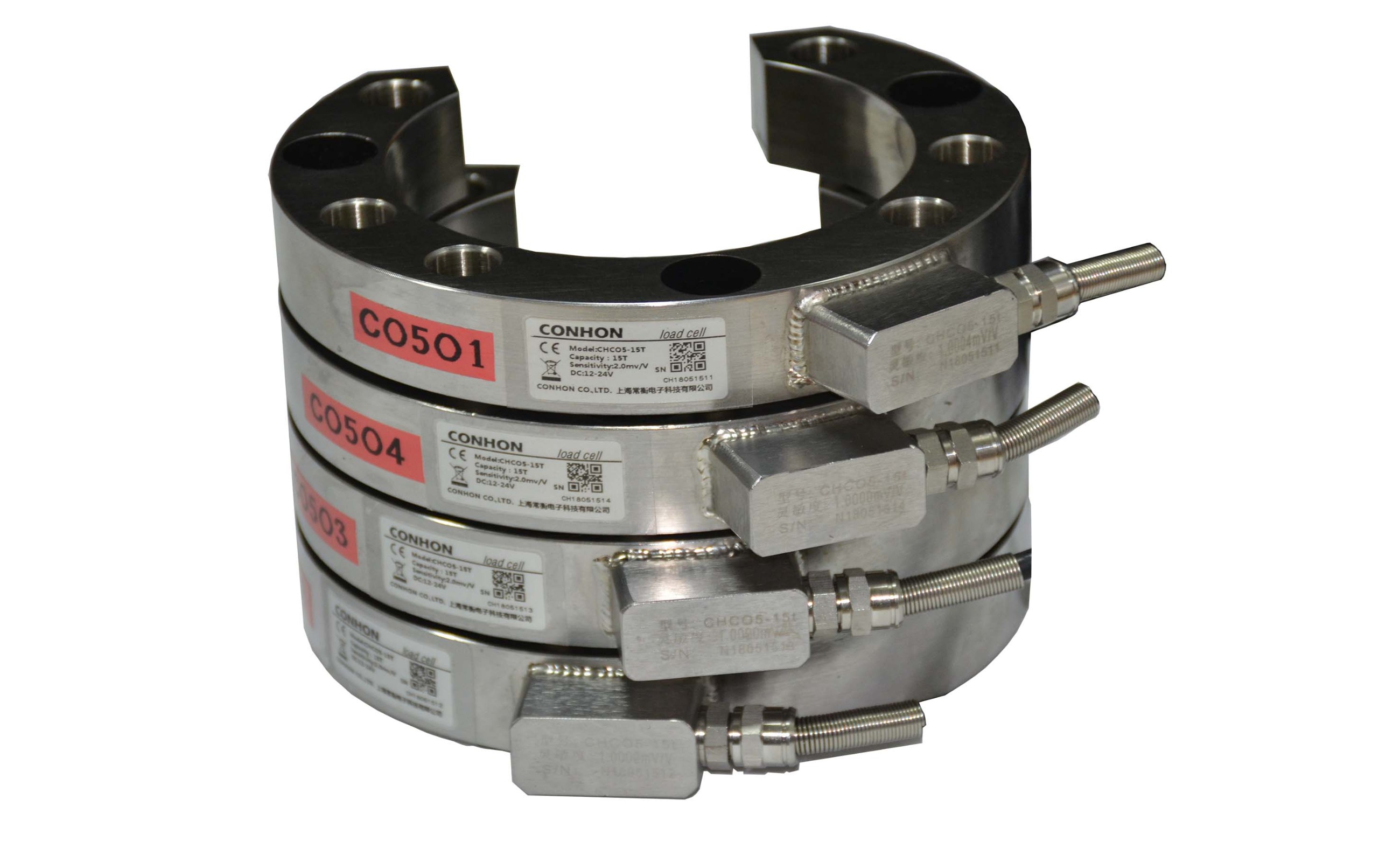

| CHCO-5传感器 产品图片 |

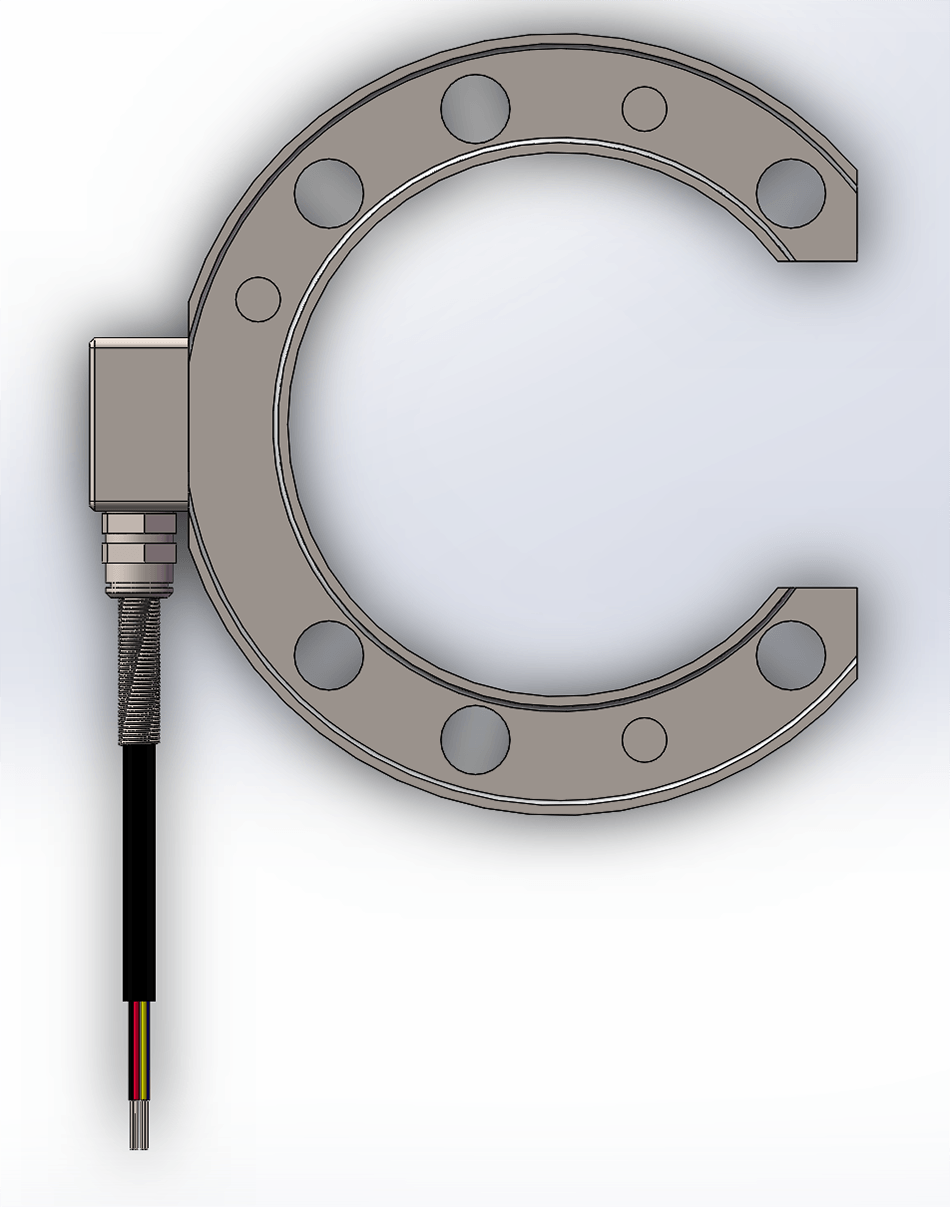

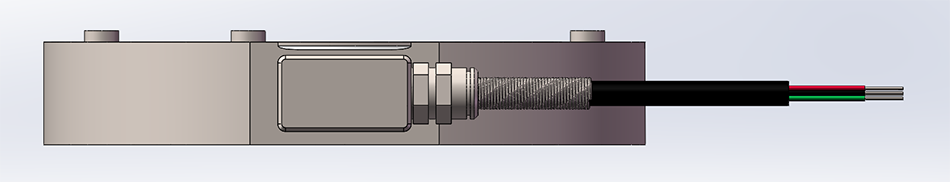

| CHCO-5传感器 产品3D图 |
CHCO-5传感器 产品尺寸 |
此图纸是15t量程
| CHCO-5技术参数 |
| Model | 型号 | CHCO5-15T |
| Capacity | 量程 | 6,8,12,16,35,50,75(t)可定制 |
| Accuracy Class | 精度等级 | C3 |
| Rated Output | 额定输出 | 1.0mV/V ±0.25% |
| Zero Balance | 零点平衡 | ±1% of rated output |
| Creep after 30 minutes | 30分钟蠕变 | ±0.03% of rated output |
| Nonlinearity | 非线性 | ±0.03% of rated output |
| Hysteresis | 滞后 | ±0.03% of rated output |
| Repeatability | 重复性 | ±0.03% of rated output |
| Temp. effect on output | 灵敏度温漂 | ≤0.002% of applied output/oC |
| Temp. effect on zero | 零点温漂 | ≤0.002% of rated output/oC |
| Safe Temp. Range | 可用温度范围 | -10oC to + 70oC |
| Temp. Compensated | 温度补偿范围 | -10oC to + 40oC |
| Safe Overload | 安全载荷 | 150% |
| Input Impedance | 输入阻抗 | 387 ohm ± 20 ohm |
| Output Impedance | 输出阻抗 | 350 ohm ± 5 ohm |
| Insulation Resistance | 绝缘阻抗 | ≥5000 M ohm (50V DC) |
| Rated Excitation | 推荐激励电压 | 10V DC/AC |
| Maximum Excitation | 最大激励电压 | 15V DC/AC |
| Cable Length | 导线长度 | 300cm |
| Cable Color Code | 导线颜色 | Red(+E) Black(-E) Green(+S) White(-S) |
| CHCO-LFR传感器 认证证书 |
| CHCO-5技术参数 |
| Model | 型号 | CHCO5-15T |
| Capacity | 量程 | 6,8,12,16,35,50,75(t)可定制 |
| Accuracy Class | 精度等级 | C3 |
| Rated Output | 额定输出 | 1.0mV/V ±0.25% |
| Zero Balance | 零点平衡 | ±1% of rated output |
| Creep after 30 minutes | 30分钟蠕变 | ±0.03% of rated output |
| Nonlinearity | 非线性 | ±0.03% of rated output |
| Hysteresis | 滞后 | ±0.03% of rated output |
| Repeatability | 重复性 | ±0.03% of rated output |
| Temp. effect on output | 灵敏度温漂 | ≤0.002% of applied output/oC |
| Temp. effect on zero | 零点温漂 | ≤0.002% of rated output/oC |
| Safe Temp. Range | 可用温度范围 | -10oC to + 70oC |
| Temp. Compensated | 温度补偿范围 | -10oC to + 40oC |
| Safe Overload | 安全载荷 | 150% |
| Input Impedance | 输入阻抗 | 387 ohm ± 20 ohm |
| Output Impedance | 输出阻抗 | 350 ohm ± 5 ohm |
| Insulation Resistance | 绝缘阻抗 | ≥5000 M ohm (50V DC) |
| Rated Excitation | 推荐激励电压 | 10V DC/AC |
| Maximum Excitation | 最大激励电压 | 15V DC/AC |
| Cable Length | 导线长度 | 300cm |
| Cable Color Code | 导线颜色 | Red(+E) Black(-E) Green(+S) White(-S) |
传感器x1
出厂检查报告x1
航空插头（或接线端子）x1
